OpenPocketCine – Free Open-Source Field Monitor App Brings Waveforms, False Color, and LUTs to DJI Osmo Cameras

Monitoring News

by Johnnie BehiriAugust 25^th, 2026

Subscribe to News - Software

OpenPocketCine is a new free, open-source iPhone and iPad app that turns a phone into a field monitor for DJI’s Osmo cameras, adding waveform, vectorscope, false color, focus peaking, and custom LUT support to a camera line that never had them. It also controls the camera remotely, locks the gimbal onto faces with a tap, and can push clips to Frame.io. Here is a closer look at what the project offers, and where its limits currently lie.

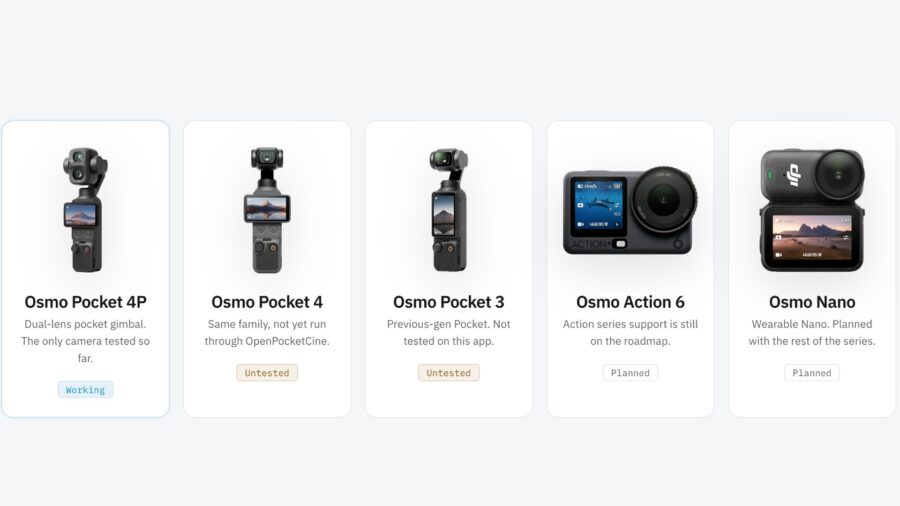

Created by developer Erik Sutton and licensed under Apache 2.0, OpenPocketCine is currently in beta via Apple’s TestFlight. The app pairs with the camera over Bluetooth, joins the camera’s own Wi-Fi, and decodes the live HEVC feed on the phone, where it overlays waveform, RGB parade, histogram, vectorscope, false color, zebras, focus peaking, frame guides, grids, and user-loaded .cube LUT files. According to the developer, the app is so far tested on the DJI Osmo Pocket 4 Pro only, while the Osmo Pocket 4 and Pocket 3 remain untested. Live view from the Osmo Nano is also captured on iOS, and support for the Osmo Action series is on the roadmap.

Filling a real monitoring gap

Monitoring has always been the weak point of the Osmo Pocket concept. The built-in screen works well for framing, but judging exposure in a log profile on a small display in daylight is guesswork, and DJI’s own Mimo app offers nothing resembling professional scopes. That gap has grown more relevant with the Pocket 4 Pro and its 10-bit D-Log 2 profile. An image with that much headroom (lab test here), benefits from monitoring tools that actually let shooters place their exposure with confidence, and this is precisely the gap OpenPocketCine targets.

Scopes drawn straight from the live feed

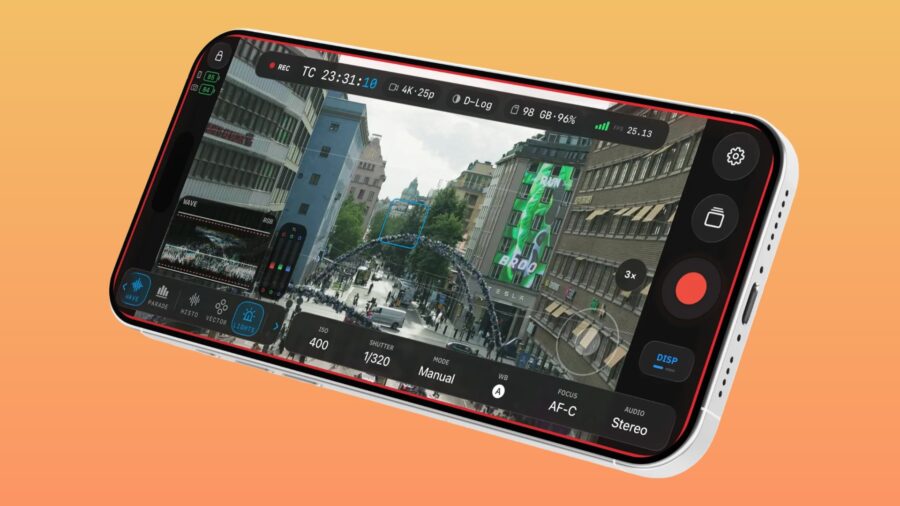

The monitoring toolset reads like the spec sheet of a dedicated production monitor: waveform, RGB parade, histogram, and vectorscope running live next to the image, plus false color, zebras, focus peaking, and a RED cinema–inspired “Traffic Lights” exposure indicator painted onto the feed itself. Framing aids include grids, aspect ratio guides, and a center crosshair, and built-in or custom .cube LUTs can be applied to preview a look while shooting in log.

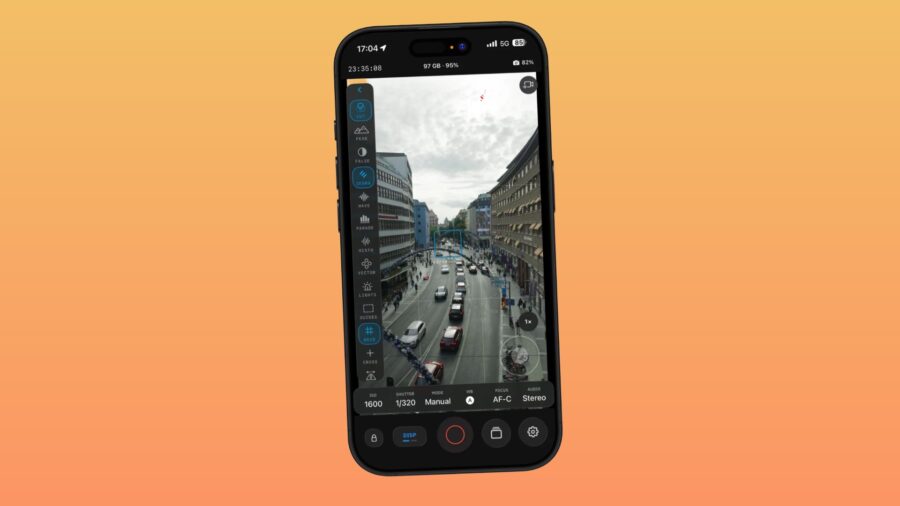

All of this is computed from the compressed HEVC live stream the camera sends to the phone. The app also shows timecode, battery, storage, and camera status readouts, and the full assist rail remains available when the phone is rotated into portrait orientation for vertical work.

Camera control, face lock, and a clever D-Log 2 detail

OpenPocketCine is not only a monitor. On iOS, it can start and stop recording, adjust ISO, EV, and zoom, and drive the gimbal on Pocket models. On the Pocket 4 Pro, OpenPocketCine lets users quickly switch from D-Log 2 to regular D-Log when they need to use zoom, without navigating the camera’s menus. The switch requires a brief interruption to recording. It is the kind of behavior that suggests the developer has run into a limitation in actual use.

Face tracking is handled in a hybrid way. The app runs its own on-device face detection and draws boxes over the live feed; tapping a box then hands that subject over to the camera’s native subject tracking. For solo shooters, which describes most Osmo use, locking the gimbal onto a person from the phone while simultaneously watching scopes addresses two problems in a single gesture.

Review the take, bake the look, ship it to Frame.io

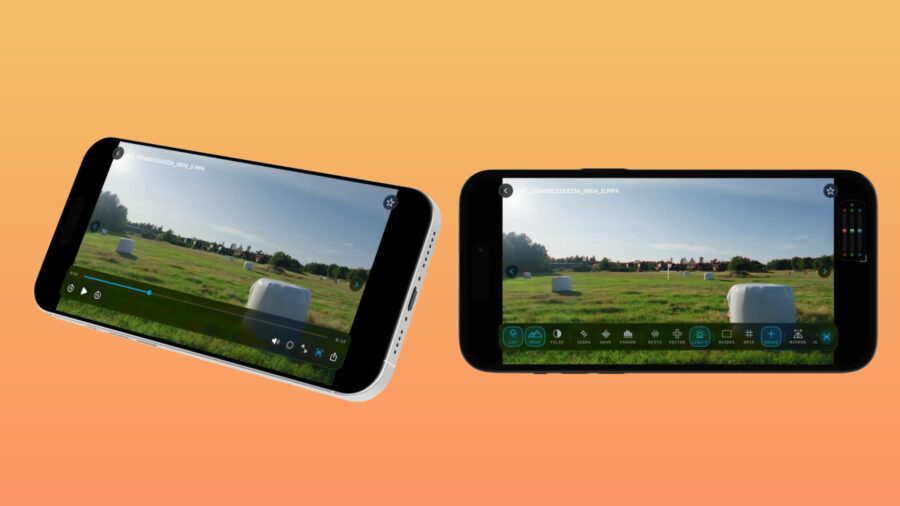

Beyond live monitoring, the app doubles as a review station. Clips and stills on the camera can be browsed, starred, or deleted before packing up, with the same scopes and view assists available during playback. Export goes further: clips can be shared natively, previewed at conformed speed for high frame rate material, or exported with a LUT baked in. There is also optional Frame.io Camera to Cloud support, provided users supply their own Adobe app keys, which turns a pocket gimbal camera into a small cloud-connected acquisition device. Interestingly, DJI itself only recently added cloud and NAS uploads to the Pocket line via firmware, so third-party and first-party workflows are converging here from two directions.

No DJI SDK, and an honest word of caution

An important point: the app is not affiliated with DJI, and no DJI SDK is used. The Bluetooth pairing and Wi-Fi communication were reverse-engineered, with the developer crediting Konrad Iturbe’s open-source Osmosis project as the inspiration for the connection approach, and the findings are documented in a public protocol handbook. Sutton is refreshingly candid about the limits of that approach, advising users to verify record start and stop on the camera body itself until they trust the link, since reverse-engineered control can be incomplete.

That transparency sets the right expectations. Anyone considering the app for paid work should establish for themselves how reliably it behaves with their specific camera and phone before depending on it, particularly for remote record triggering.

Free, open, and built in an unusual way

There are no subscriptions, no paywalls, no advertising, and no telemetry; the entire source code lives on GitHub, where the roadmap is shaped publicly through community discussions. One further detail worth noting: the project openly states it is built with the help of frontier AI models such as Claude, Codex, and Grok. Whatever one’s position on AI-assisted development, a reverse-engineering project of this complexity being developed this way, completely in the open, is notable in itself.

As for platforms, iOS is clearly the priority: the app runs on both iPhone and iPad and is available now through TestFlight. An early Android version exists in the repository with live pairing, HEVC live view, and a thinner control set, but it is not on Google Play yet. This remains beta software talking to cameras over an unofficial protocol, so it should be treated as the promising work in progress it is. More details can be found on the OpenPocketCine website.
