ZEISS Horizon Anamorphic Lenses Unveiled – Full-Frame 2x, Built-In Motors, Swappable Look Element

Lens News

by Johnnie BehiriJune 2^nd, 2026

Subscribe to News - Lenses

ZEISS has introduced the Horizon Anamorphic series, a set of full-frame 2x anamorphic cinema lenses built on an entirely new technology platform that integrates focus and iris motors directly into the lens body. Spanning seven focal lengths from 35mm to 200mm with a fast T2.3 stop (T2.9 at 200mm), an interchangeable look-tuning back element, and a shared 114mm front diameter, the range makes its first public appearance at Cine Gear Expo Los Angeles on June 5-6.

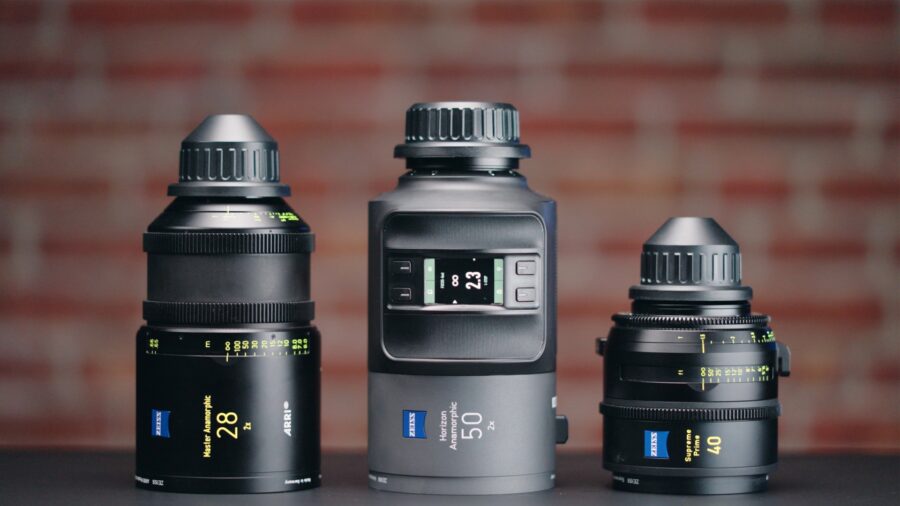

The Horizon line marks a notable departure from how ZEISS has positioned its recent cine glass. Rather than another optically distinctive prime set in the vein of the Nano Primes for mirrorless or the large-format Panoptes 65, ZEISS describes Horizon as a reference platform: a lens that bundles motors, metadata, and ecosystem compatibility into a single body. The company frames it as the next chapter of its cinema optics, with Christophe Casenave, Head of Business Unit Cinematography at ZEISS, positioning the series around combining the technology with a refined, human image character.

A 2x anamorphic look with oval bokeh and stretched depth

Horizon is a full-frame 2x anamorphic series, which puts it in the classic camp of pronounced horizontal squeeze rather than the milder 1.5x and 1.8x options that have proliferated for 16:9 and open-gate sensors. ZEISS leans into that, citing pronounced oval bokeh and a stretched sense of spatial depth as the core of the look. For anyone weighing where this sits in the wider field, our anamorphic lens guide lays out how 2x compares to the lower squeeze ratios now common on the market.

The optical design is built around a neutral baseline. ZEISS says the lenses are engineered to accept filtration, LUTs, and varied lighting approaches without imposing a baked-in character, which is a deliberate counterpoint to the heavily flared, heavily aberrated vintage anamorphic trend. That neutrality also feeds a practical claim: low distortion, stable color, and minimized aberrations make the set suitable for VFX-intensive work that demands clean keying, tracking, and CG integration.

One lens, multiple looks

The headline optical feature is an optional interchangeable look-tuning back element. ZEISS describes this as a proprietary optical integration mounted via the ZEISS Interchangeable Mount System (IMS) that alters sharpness, contrast, and overall character through a simple eight-screw swap. Crucially, the company says the swap preserves scale accuracy and calibration, so dialing in a different look does not mean re-rigging or re-mapping the lens. In effect, ZEISS is offering a way to move between a clean baseline and a more characterful rendering without committing to a single optical personality across a shoot.

Motors, metadata, and on-barrel displays built into the lens

The bigger structural shift is integration. Whisper-quiet focus and iris motors are built directly into the lens body, eliminating the need for external focus or iris motors. ZEISS says these are compatible with ARRI and Preston LCS systems over serial or LBUS connections, so they slot into existing lens control workflows rather than replacing them.

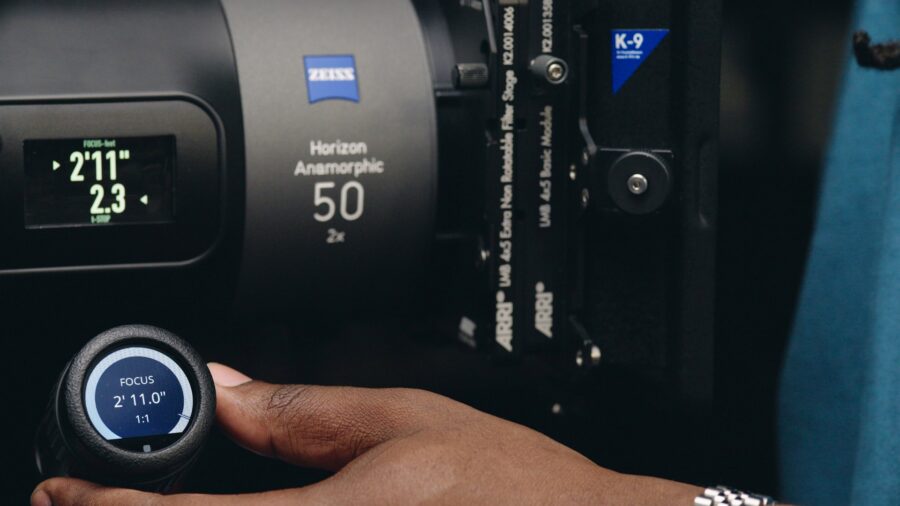

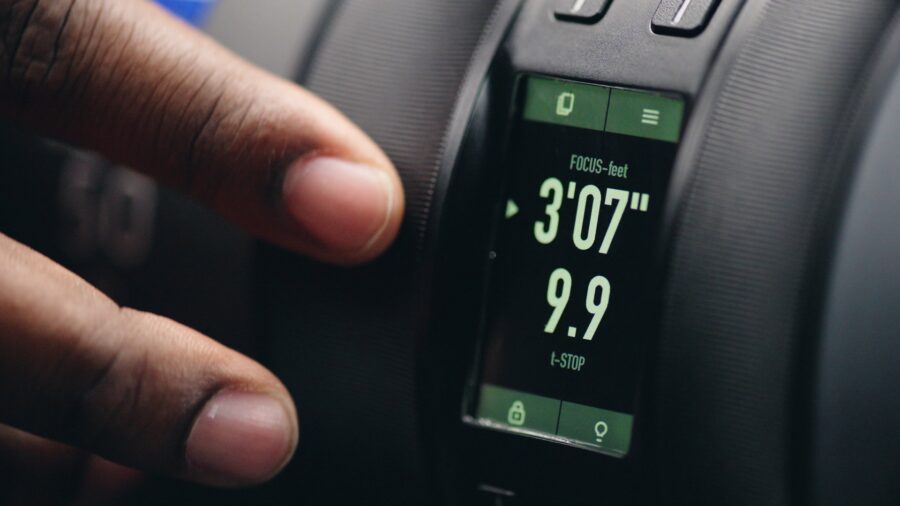

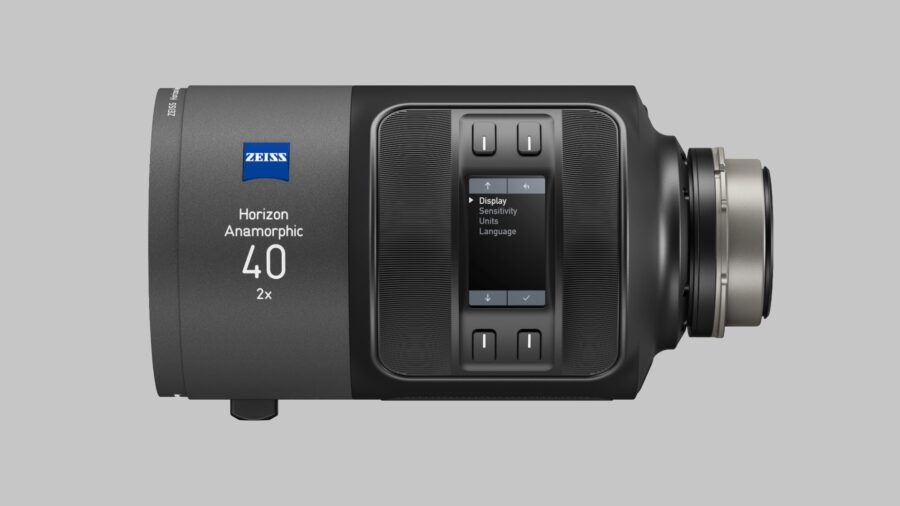

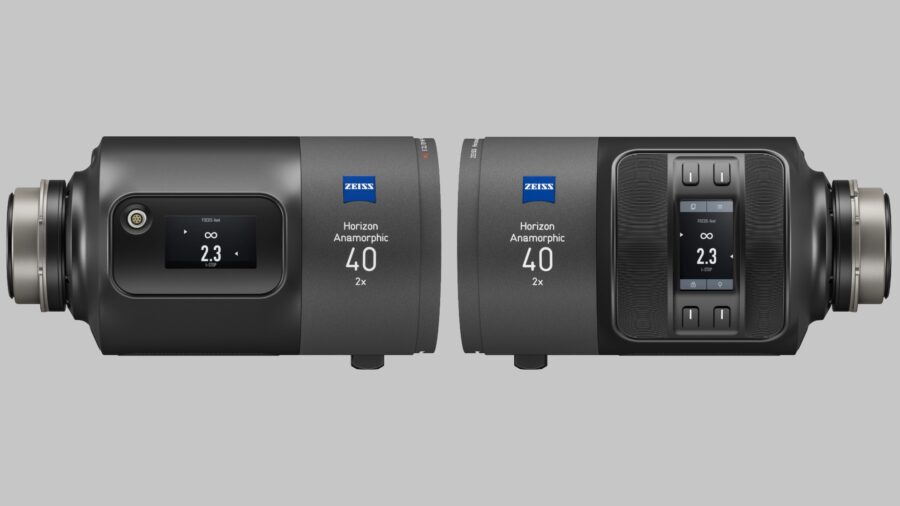

Factory-calibrated absolute encoders store all lens scales within the lens itself, which ZEISS positions as a single, consistent source of metadata. The practical payoff is the removal of two familiar on-set chores: re-mapping scales and re-rigging motors between setups. Dual displays and touch panels on the lens barrel let an operator or focus puller run quick focus or iris checks directly at the lens. Casenave describes Horizon as a reference platform that integrates lens motors, data, and ecosystem compatibility to enable faster, end-to-end production workflows.

That integration story dovetails with ZEISS’s broader pipeline. The company has steadily extended its eXtended Data metadata layer downstream into software through the CinCraft ecosystem, including CinCraft Scenario for real-time camera tracking and the recently launched CinCraft LensCore Nuke plugin for ray-traced lens looks in post. A lens range that stores and outputs consistent metadata fits that direction cleanly.

Coverage, speed, and rig compatibility

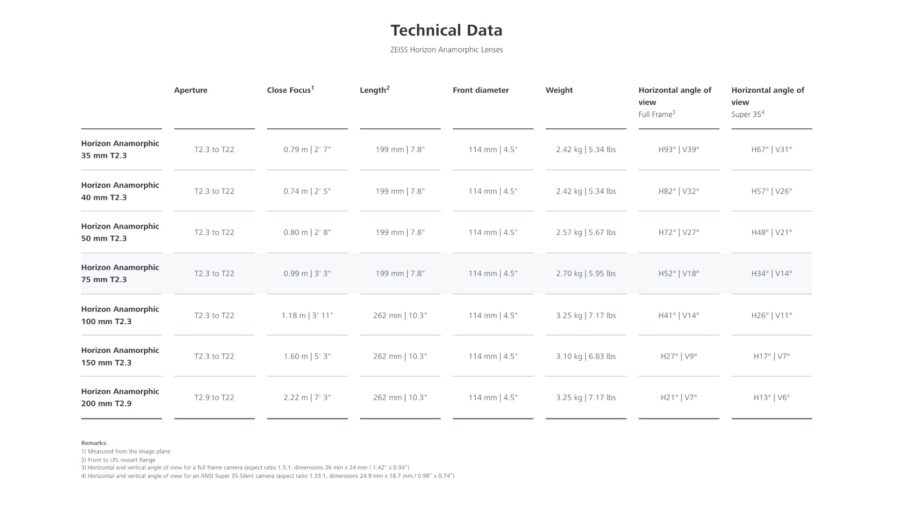

All seven lenses ship with an LPL mount and share a consistent 114mm front diameter, which ZEISS says supports balanced handheld, gimbal, drone, crane, and car-rig operation without re-matting matte boxes or rebalancing across focal lengths. The set covers the full range from 35mm to 200mm.

On speed, the lenses hold a fast T2.3 across the full-frame coverage set, dropping to T2.9 at the 200mm. That is quick for full-frame 2x anamorphic glass and should preserve shallow depth of field in challenging lighting. ZEISS also notes built-in processing and on-board memory designed to support future expansions, naming broader ecosystem compatibility, extended metadata capabilities, and potential autofocus integration as possibilities, though those remain forward-looking rather than shipping features.

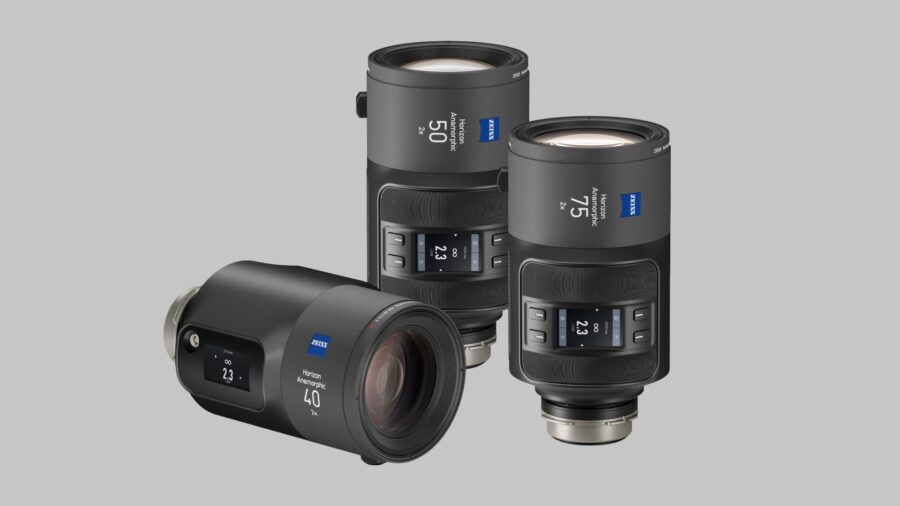

The 40mm, 50mm, and 75mm Horizon Anamorphic lenses are scheduled to ship in September 2026 through authorized ZEISS cinema dealers. The 35mm, 100mm, 150mm, and 200mm focal lengths are set to follow across 2026 and 2027. ZEISS has not disclosed pricing. Full details are available on the ZEISS Horizon Anamorphic page.

The combination of full-frame 2x optics, built-in motors, and a swappable look element is one of the more ambitious platform plays we have seen from ZEISS in years. Does an integrated motorized anamorphic appeal to your workflow, or do you prefer keeping motors external? Don’t hesitate to let us know in the comments below!
